产品中心 > SMAS |
您现在的位置：网站首页 > 产品中心 |
|
|
| |
| |
|

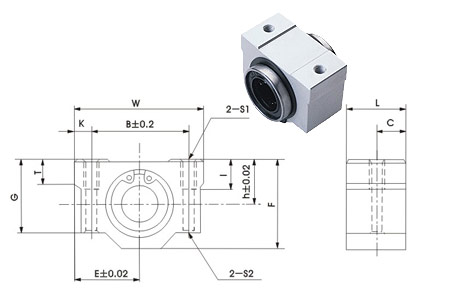

型号 |
轴径 |
主要尺寸 |
安装尺寸 |
重量(kg) |
|
h |
E |
W |
L |
F |
G |
T |
B |
C |
K |
S1 |
S2 |
l |
|
SMA8S |
8 |
11 |
17 |
34 |
15.5 |
22 |
18 |
6 |
24 |
7.75 |
5 |
M4 |
3.4 |
8 |
0.027 |
|
SMA10S |
10 |
13 |
20 |
40 |
20 |
26 |
21 |
8 |
28 |
10 |
6 |
M5 |
4.3 |
12 |
0.053 |
|
SMA12S |
12 |
15 |
21 |
42 |
21 |
28 |
24 |
8 |
30.5 |
10.5 |
5.75 |
M5 |
4.3 |
12 |
0.06 |
|
SMA13S |
13 |
15 |
22 |
44 |
20.6 |
30 |
24.5 |
8 |
33 |
10.3 |
5.5 |
M5 |
4.3 |
12 |
0.064 |
|
SMA16S |
16 |
19 |
25 |
50 |
24.1 |
38.5 |
32.5 |
9 |
36 |
12.05 |
7 |
M5 |
4.3 |
12 |
0.11 |
|
SMA20S |
20 |
21 |
27 |
54 |
28.1 |
41 |
35 |
11 |
40 |
14.05<, /B> |
7 |
M6 |
5.2 |
12 |
0.144 |
|
SMA25S |
25 |
26 |
38 |
76 |
38 |
51.5 |
42 |
12 |
54 |
19 |
11 |
M8 |
7 |
18 |
0.34 |
|
SMA30S |
30 |
30 |
39 |
78 |
41.5 |
59.5 |
49 |
15 |
58 |
20.75 |
10 |
M8 |
7 |
18 |
0.424 |
|
SMA35S |
35 |
34 |
45 |
90 |
45.5 |
68 |
54 |
18 |
70 |
22.75 |
10 |
M8 |
7 |
18 |
0.626 |
|
KBA40S |
40 |
40 |
51 |
102 |
56.5 |
78 |
62 |
20 |
80 |
28.25 |
11 |
M10 |
8.7 |
25 |
1.0 |
|
KBA50S |
50 |
52 |
61 |
122 |
69 |
102 |
80 |
25 |
100 |
34.5 |
11 |
M10 |
8.7 |
25 |
2.1 | |
| |
|
|
|
