产品中心 > SWA |
您现在的位置：网站首页 > 产品中心 |
|
|
| |
| |
|

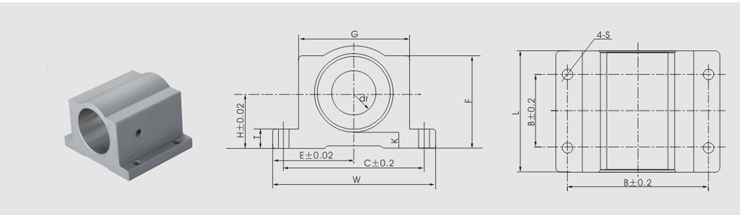

型号 |
轴径 |
主要尺寸 |
安装尺寸 |
重量(kg) |
|
B |
C |
S1 |
|
H |
E |
W |
L |
F |
T |
G |
K |
|
SWA8 |
12.7 |
17.45 |
25.4 |
50.8 |
42.88 |
28.58 |
6.35 |
34.93 |
6.342 |
25.4 |
42.88 |
3.94 |
0.09 |
|
SWA10 |
15.875 |
22.22 |
31.75 |
63.5 |
49.2 |
36.5 |
7.14 |
44.45 |
7.94 |
28.58 |
53.98 |
4.7 |
0.12 |
|
SWA12 |
19.05 |
23.8 |
34.92 |
69.85 |
52.4 |
39.67 |
7.92 |
47.63 |
7.925 |
31.75 |
60.325 |
4.7 |
0.19 |
|
SWA16 |
25.4 |
30.15 |
41.28 |
82.55 |
71.45 |
49.2 |
9.53 |
60.33 |
10.3 |
44.45 |
73.03 |
5.5 |
0.4 |
|
SWA20 |
31.75 |
38.1 |
50.8 |
101.6 |
92.08 |
63.5 |
11.1 |
76.2 |
12.705 |
50.8 |
88.9 |
5.5 |
0.8 |
|
SWA24 |
38.1 |
44.45 |
60.32 |
120.65 |
101.6 |
74.6 |
12.7 |
88.9 |
14.29 |
63.5 |
104.78 |
7.1 |
1.16 | |
| |
|
|
|
