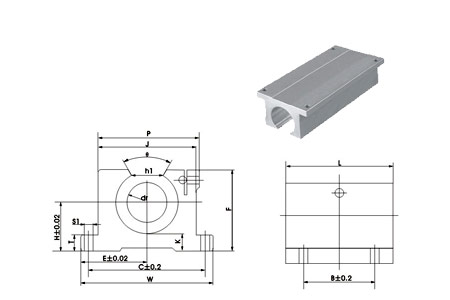

型号 |
轴径 |
主要尺寸 |
安装尺寸 |
重量(kg) |
|
K |
J |
P |
B |
C |
S1 |
|
H |
E |
W |
L |
F |
θ |
T |
h1 |
|
SWD8L |
12.7 |
17.45 |
26.5 |
53 |
88.9 |
28.7 |
60° |
6.53 |
10.64 |
6.342 |
35.75 |
36.5 |
25.4 |
42.88 |
3.96 |
0.165 |
|
SWD10L |
15.875 |
22.22 |
31.75 |
63.5 |
101.6 |
36.53 |
60° |
7.11 |
13.49 |
7.942 |
44.5 |
46.04 |
28.57 |
53.97 |
4.75 |
0.288 |
|
SWD12L |
19.05 |
23.8 |
34.92 |
69.85 |
114.3 |
39.7 |
60° |
7.87 |
15.87 |
7.925 |
48.41 |
49.98 |
31.75 |
60.325 |
4.75 |
0.379 |
|
SWD16L |
25.4 |
30.15 |
41.27 |
82.55 |
152.4 |
50.8 |
60° |
9.65 |
19.3 |
10.3 |
61.11 |
62.69 |
44.45 |
73.03 |
5.54 |
0.811 |
|
SWD20L |
31.75 |
38.1 |
50.8 |
101.6 |
190.5 |
63.5 |
60° |
11.1 |
24.2 |
12.705 |
76.2 |
78.58 |
50.8 |
88.9 |
5.54 |
1.508 |
|
SWD24L |
38.1 |
44.45 |
60.32 |
120.65 |
228.6 |
74.6 |
60° |
12.7 |
30.16 |
14.29 |
88.9 |
90.48 |
63.5 |
104.78 |
7.137 |
2.222 | |
| |
|
|
|
